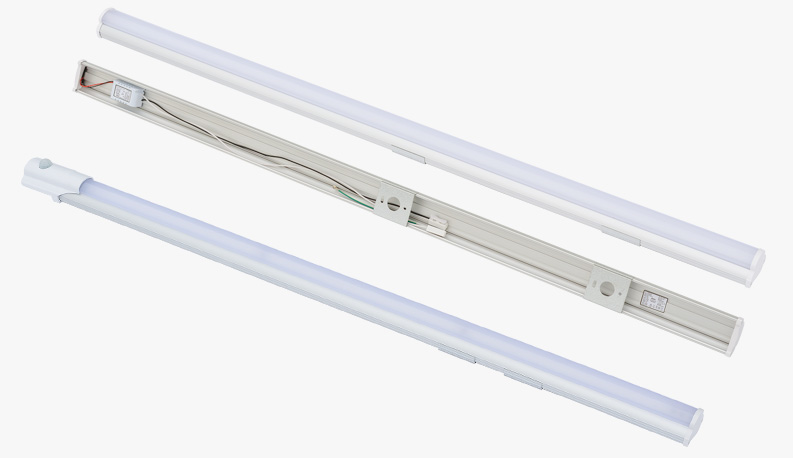

Raceway light

  • · Eco-friendly certification
  • · Excellent heat dissipation (Metal PCB)
  • · No lifetime shortening caused by frequent switch on/off
  • · Prevent intrusion of pests
  • · PCB leakage prevention sheet
  • · Insulating, Flickr-free SMPS
  • · Effective energy-saving products
  • · LED Package : Seoul Semiconductor,Samsung LED
  • · Apartment, School, Hospital, Store

Specification

Model Type Watt-
age
(W)		 Lumen
(lm)		 Effici-
ency
(lm/W)		 Col.Temp
(K)		 Beam
( ° )		 Dimen-
sion
(mm)
PLL-014W578SS4 Always 14 2,610 ↑ 145 ↑ 5,700 110 1,200 x 60 x 42
PLL-018W578SS4 Always 18 2,610 ↑ 145 ↑ 5,700 110 1,200 x 60 x 42
PLL-040W578SS2 Always 40 4,400 ↑ 110 ↑ 5,700 110 1,200 x 60 x 42
PLB-018W578SS4 PIR Sensor 18 2,340 ↑ 130 ↑ 5,700 110 1,200 x 60 x 42
PLB-040W578SS2 PIR Sensor 40 4,400 ↑ 110 ↑ 5,700 110 1,200 x 60 x 42

Drawings

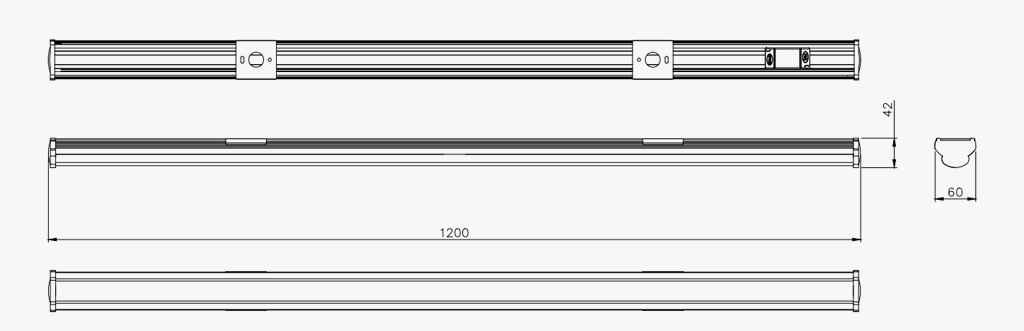

  • Always

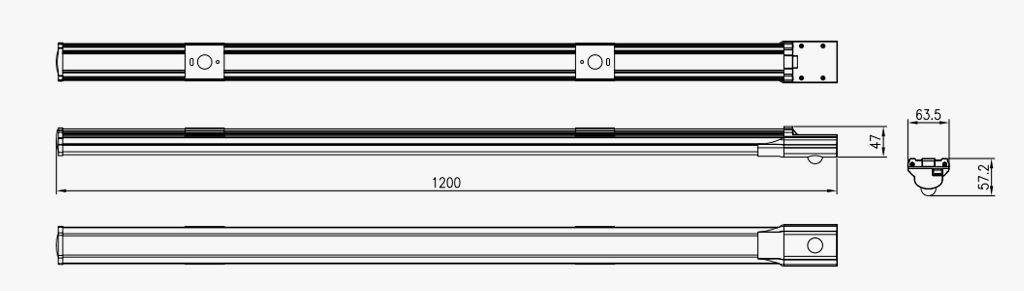

  • PIR Sensor
