Stadium light

  • · Tilting type
  • · Excellent heat dissipation
  • · Prevent condensation
  • · OSRAM DC Converter
  • · Waterproof and dustproof rating IP66, Surge resistance 6.0kV
  • · Over 600W custom order
  • · LED Package : Samsung LED
  • · Stadium, Sports facility, Golf course, etc.

Specification

Model Watt-
age
(W)		 Lumen
(lm)		 Effici-
ency
(lm/W)		 Col.Temp
(K)		 Weight
(kg)		 Dimen-
sion
(mm)
FDEO-200W578SS 200 26,000 ↑ 130 ↑ 5,700 5.2 412 x 184.5 x 120
FDEO-400W578SS 400 52,000 ↑ 130 ↑ 5,700 12.2 437 x 370 x 120
FDEO-600W578SS 600 78,000 ↑ 130 ↑ 5,700 16.4 437 x 555 x 120
FDEO-800W578SS 800 104,000 ↑ 130 ↑ 5,700 24.6 810 x 370 x 120
FDEO-1200W578SS 1200 156,000 ↑ 130 ↑ 5,700 35.8 810 x 555 x120

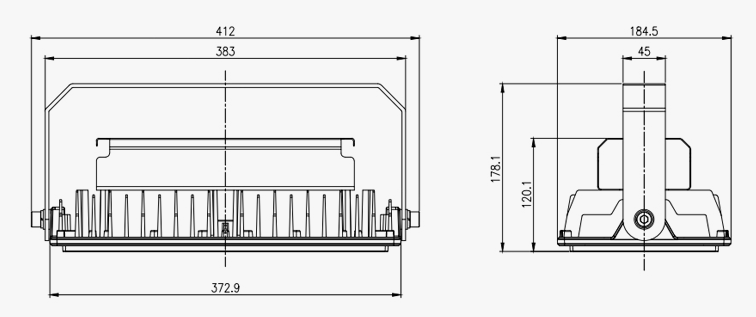

Drawings
