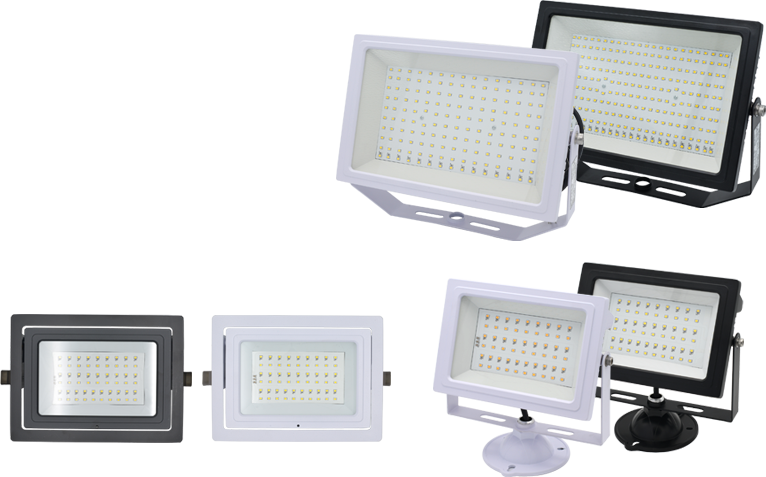

Flood Light

  • · Exposed and buried type configuration
  • · Constant current type all in over converter
  • · Prevent condensation by the Gore-tex
  • · Waterproof and dustproof rating IP67
  • · Choose cover color(black/white)
  • · LED Package : Samsung LED
  • · Factory, Outdoor signage, Freezing warehouse, etc

Specification

Class Model Watt-
age
(W)		 Effici-
ency
(lm/W)		 Lumen
(lm)		 Col.Temp
(K)		 Certified
Exposed type FDB-035W578S 35 90 ↑ 3,150 ↑ 3,000 KS
FDB-035W308S 35 90 ↑ 3,150 ↑ 5,700 KS
FDB-050W578S 50 90 ↑ 4,500 ↑ 3,000 KS
FDB-050W308S 50 90 ↑ 4,500 ↑ 5,700 KS
FDEO-100W578S 100 115 ↑ 11,500 ↑ 5,700 KS, HE
FDEO-150W578S 150 115 ↑ 17,250 ↑ 5,700 KS, HE
Buried type FDDB-035W578S 35 90 ↑ 3,150 ↑ 3,000 KS
FDDB-035W308S 35 90 ↑ 3,150 ↑ 5,700 KS
FDDB-050W578S 50 90 ↑ 4,500 ↑ 3,000 KS
FDDB-050W308S 50 90 ↑ 4,500 ↑ 5,700 KS

Drawings

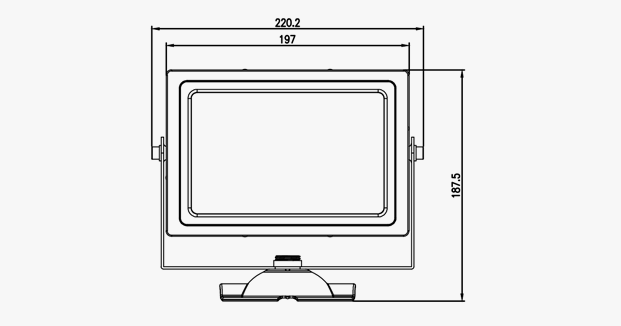

  • Exposed type 35W, 50W

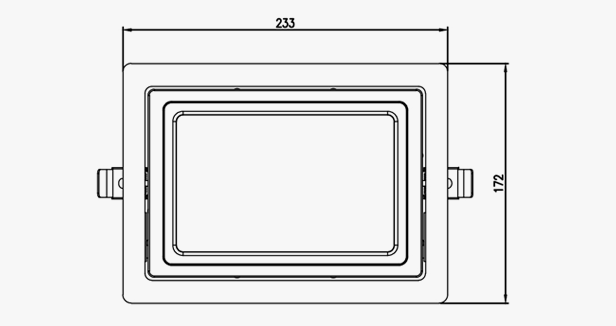

  • Buried type 35W, 50W

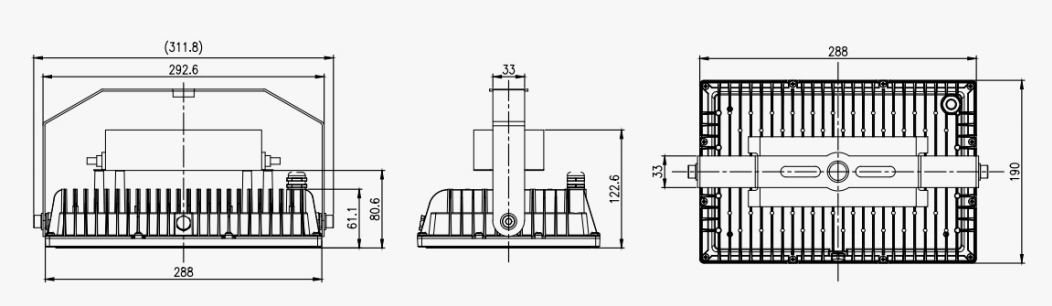

  • 100W, 150W
