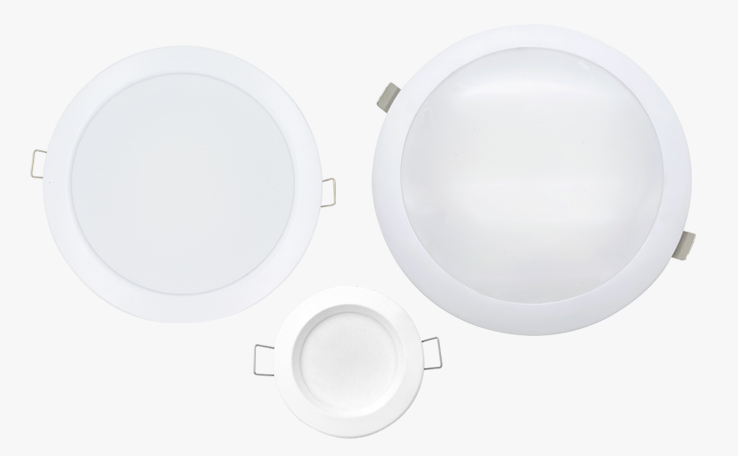

Down light
- · Eco-friendly certification
- · Excellent heat dissipation (Metal PCB)
- · No lifetime shortening caused by frequent switch on/off
- · Prevent intrusion of pests
- · Excellent Insulation Design
- · LED Package : Samsung LED,Seoul Semiconductor
- · Apartment, School, Hospital, Store, etc.
Specification
| Model | Watt- age (W) |
Lumen (lm) |
Effici- ency (lm/W) |
Col.Temp (K) |
Weight (g) |
hole (mm) |
Dimen- sion (mm) |
Certified |
|---|---|---|---|---|---|---|---|---|
| DL06B-012W578SS | 12 | 1,380 ↑ | 105 ↑ | 5,700 | 150 | 150 | Φ175 x 61(H) | KS,HE,ECO |
| DL06B-015W308S | 15 | 1,650 ↑ | 105 ↑ | 3,000/4,000 | 150 | 150 | Φ175 x 61(H) | KS,HE |
| DL06B-015W578SS4 | 15 | 1,575 ↑ | 105 ↑ | 5,700 | 150 | 150 | Φ175 x 61(H) | KS,HE,ECO |
| DL06BE-015W578S (Emg) | 15 | 1,575 ↑ | 105 ↑ | 5,700 | 150 | 150 | Φ175 x 61(H) | KS,HE |
| DL06B-020W308S | 20 | 2,100 ↑ | 105 ↑ | 3,000/4,000/5,700 | 150 | 150 | Φ175 x 61(H) | KS,HE |
| DL08B-040W578SS (8") | 40 | 4,400 ↑ | 110 ↑ | 5,700 | 200 | 200 | Φ220 x 72(H) | KS,HE |
| DL03B-005W308S (3") | 5 | 500 ↑ | 100 ↑ | 3,000 | 80 | 75 | Φ98 x 27(H) | KS |
| DL03B-005W408S (3") | 5 | 500 ↑ | 100 ↑ | 4,000 | 80 | 75 | Φ98 x 27(H) | KS,HE |
| DL03B-005W578S (3") | 5 | 500 ↑ | 100 ↑ | 5,700 | 80 | 75 | Φ98 x 27(H) | KS,HE |
| DL04B-008W308S (4") | 8 | 800 ↑ | 100 ↑ | 3,000 | 95 | 95 | Φ120 x 29(H) | KS |
| DL04B-008W408S (4") | 8 | 800 ↑ | 100 ↑ | 4,000 | 95 | 95 | Φ120 x 29(H) | KS,HE |
| DL04B-008W578S (4") | 8 | 800 ↑ | 100 ↑ | 5,700 | 95 | 95 | Φ120 x 29(H) | KS,HE |

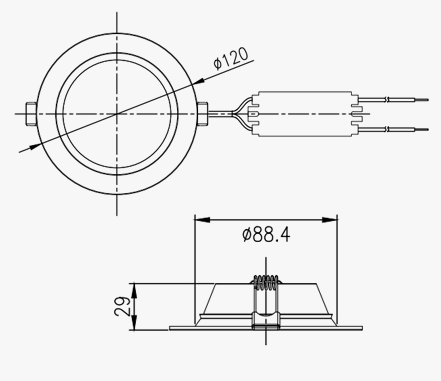

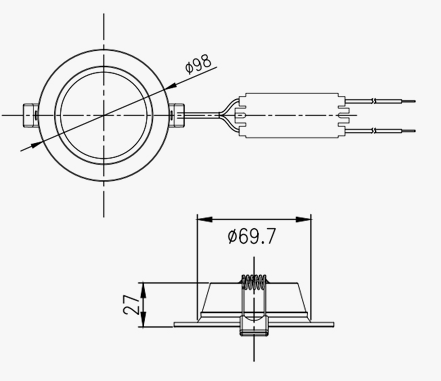

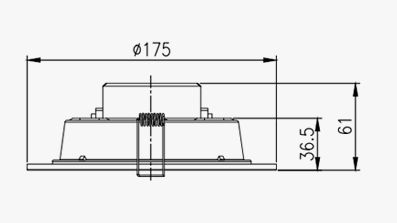

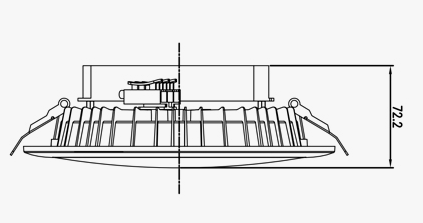

Drawings
-
6”
-
8”
-
3”
-
4”
