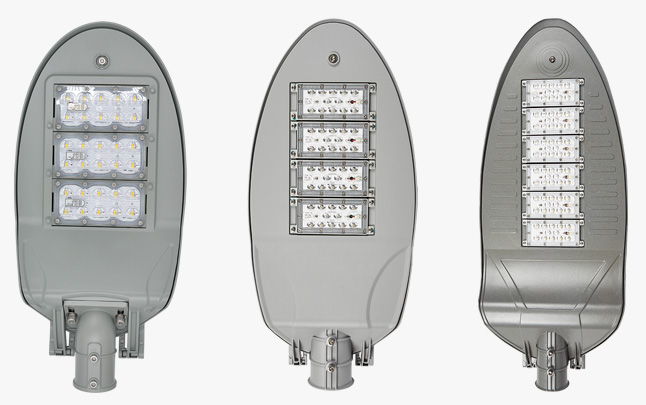

Security / Street light

  • · Easy maintenance and expandability
  • · Prevent intrusion of pests
  • · Optimal light distribution design for eack road grade
  • · SMPS internal/external combined use
  • · Waterproof and dustproof rating IP66, Surge resistance 4.0kV
  • · Apply standard LED module
  • · 125W, 150W custom order
  • · LED Package : Seoul Semiconductor
  • · Road, Residential area, Park, etc.

Specification

Model Watt-
age
(W)		 Lumen
(lm)		 Effici-
ency
(lm/W)		 Col.Temp
(K)		 Weight
(kg)		 Hole Size
(Φ)		 Dimen-
sion
(mm)
SCU-050W508SSP 50 6,250 ↑ 125 ↑ 5,000 3.7 50 505.3 x 241.5 x 118.6
SCU-075W508SSP 75 9,375 ↑ 125 ↑ 5,000 3.9 50 505.3 x 241.5 x 118.6
STU-100W508SSP 100 12,500 ↑ 125 ↑ 5,000 6 65 646 x 304 x 143
STU-125W508SSP 125 16,250 ↑ 130 ↑ 5,000 8.5 65 881 x 364 x 155
STU-150W508SSP 150 18,000 ↑ 120 ↑ 5,000 8.8 65 881 x 364 x 155

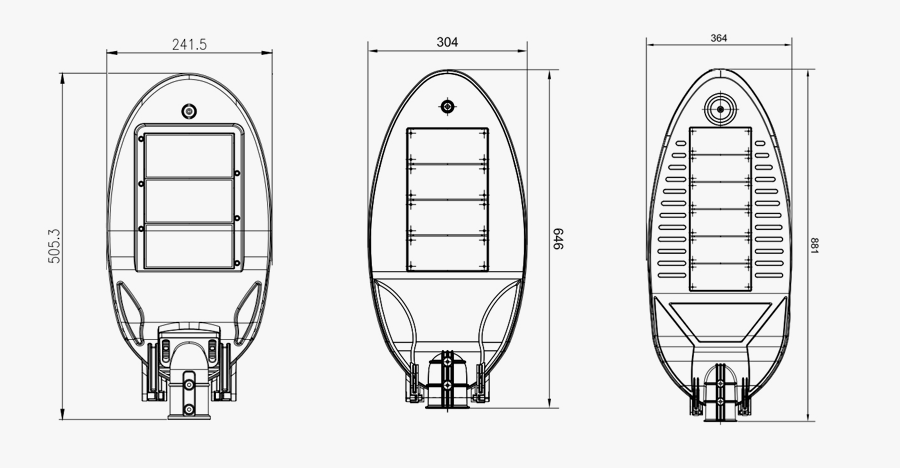

Drawings

  • 50W(75W), 100W, 125W
