Flat Panel light
- · Eco-friendly certification
- · Excellent heat dissipation
- · No lifetime shortening caused by frequent switch on/off
- · Prevent intrucsion of pests
- · PCB leakage prevention sheet
- · Effective energy-saving products
- · Insulating, Flickr-free SMPS
- · LED Package : Samsung LED
- · Apartment, School, Hospital, Store
Specification
| Model | Type | Watt- age (W) |
Lumen (lm) |
Effici- ency (lm/W) |
Col.Temp (K) |
Beam ( ° ) |
Dimen- sion (mm) |
|---|---|---|---|---|---|---|---|
| FLNB-025W578S | No drilling | 25 | 2,750 ↑ | 110 ↑ | 5,700 | 110 | 640 x 320 x 26 |
| FLMA-040W578SS2 | Buried | 40 | 4,400 ↑ | 110 ↑ | 5,700 | 110 | 1285 x 320 x 51.7 |
| FLMA-050W578S | Buried | 50 | 5,500 ↑ | 110 ↑ | 5,700 | 110 | 1285 x 320 x 51.7 |
| FLNA-040W578S | No drilling | 40 | 4,400 ↑ | 110 ↑ | 5,700 | 110 | 1285 x 320 x 49.4 |
| FLNA-050W578S | No drilling | 50 | 5,500 ↑ | 110 ↑ | 5,700 | 110 | 1285 x 320 x 26 |
| FLMB-040W578S | Buried | 40 | 4,400 ↑ | 110 ↑ | 5,700 | 110 | 640 x 640 x 49.4 |
| FLNB-040W578S2 | No drilling | 40 | 4,400 ↑ | 110 ↑ | 5,700 | 110 | 640 x 640 x 26 |
| FLMB-050W578S | Buried | 50 | 5,500 ↑ | 110 ↑ | 5,700 | 110 | 640 x 640 x 26 |
| FLNB-050W578S | No drilling | 50 | 5,500 ↑ | 110 ↑ | 5,700 | 110 | 640 x 640 x 26 |

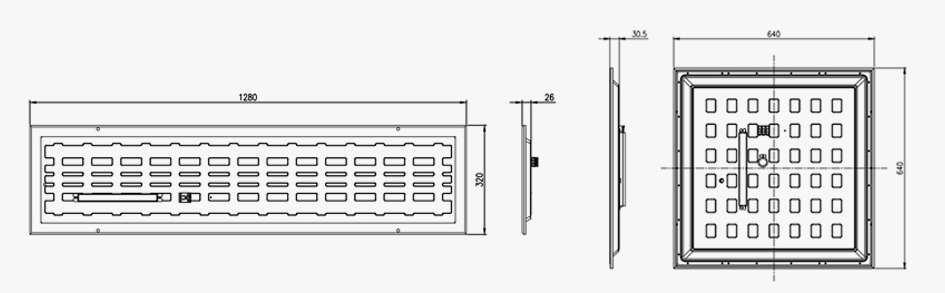

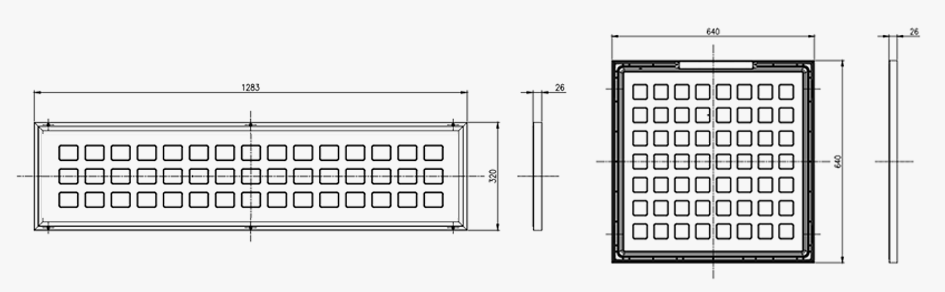

Drawings
-
Buried
-
No drilling
